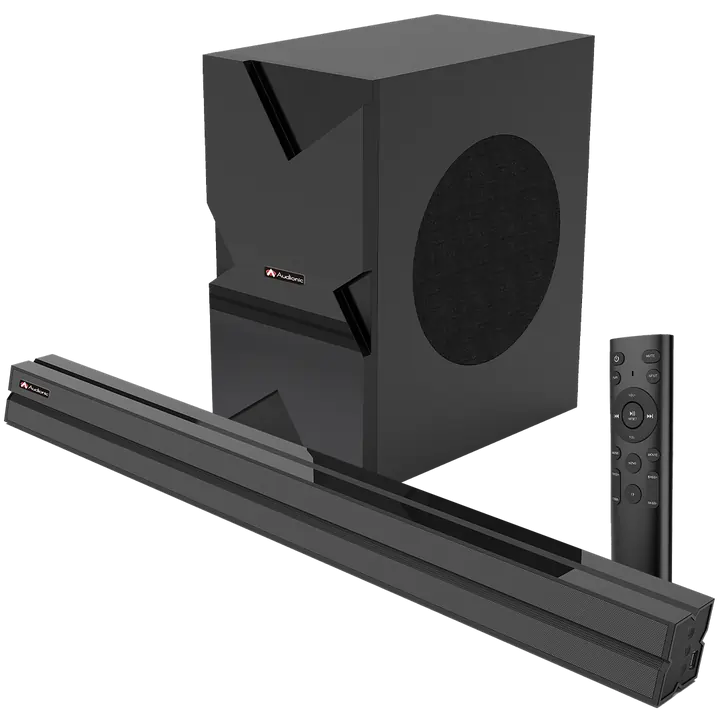

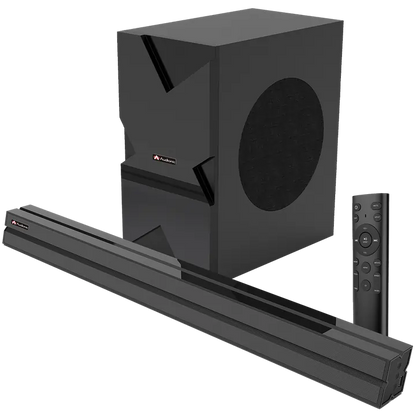

Elite 1000 Sound Bar with Wireless Woofer 2.1 Multimedia Speaker

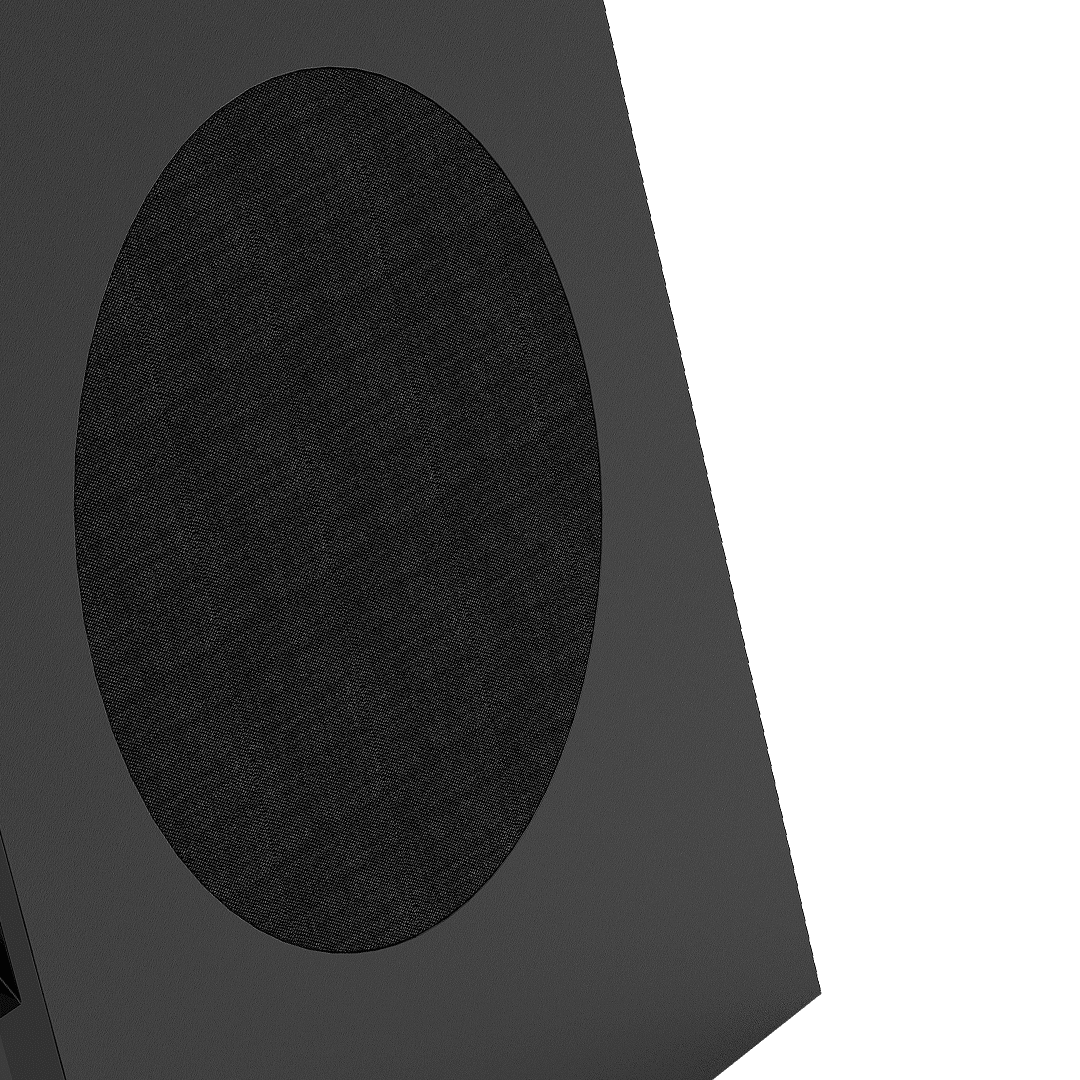

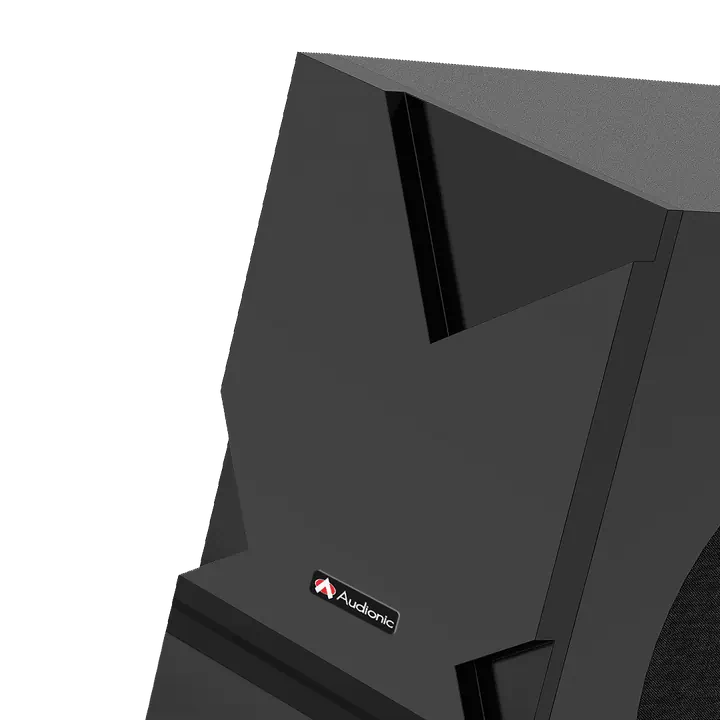

Subwoofer

• Subwoofer: 8 Inches

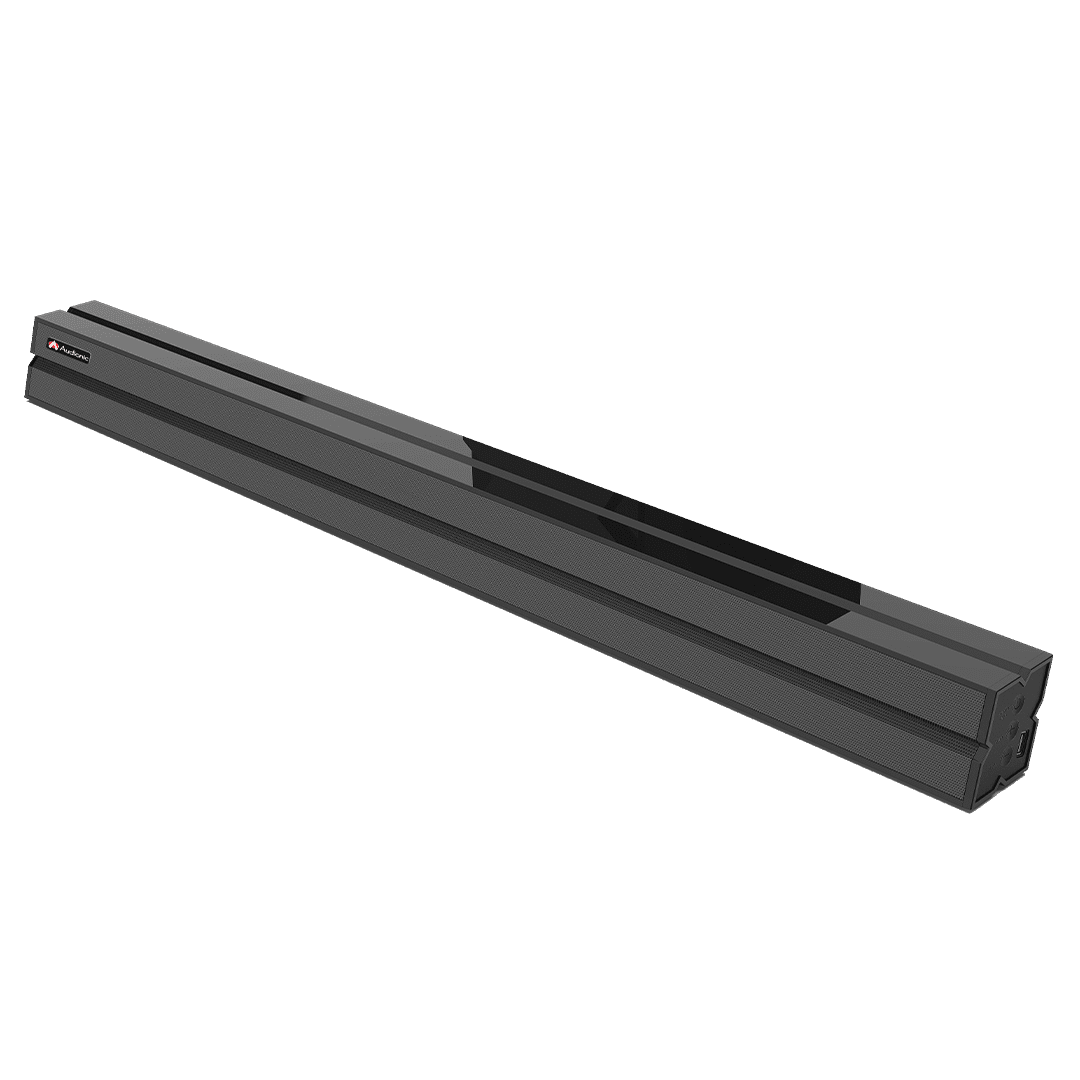

Soundbar

• Soundbar drivers: Four 55X85"

Power Output

• RMS Power: Total 240W: Subwoofer 120W+ Soundbar 120W

Wall Mountable

• Yes

Input

• Wireless BT/USB/AUX/Coaxial IN/HDMI(ARC), Optical Fiber

Frequency

• 45Hz ~ 20 KHz

Warranty

• One-year warranty

What's in the Box

• Subwoofer
• Sound bar

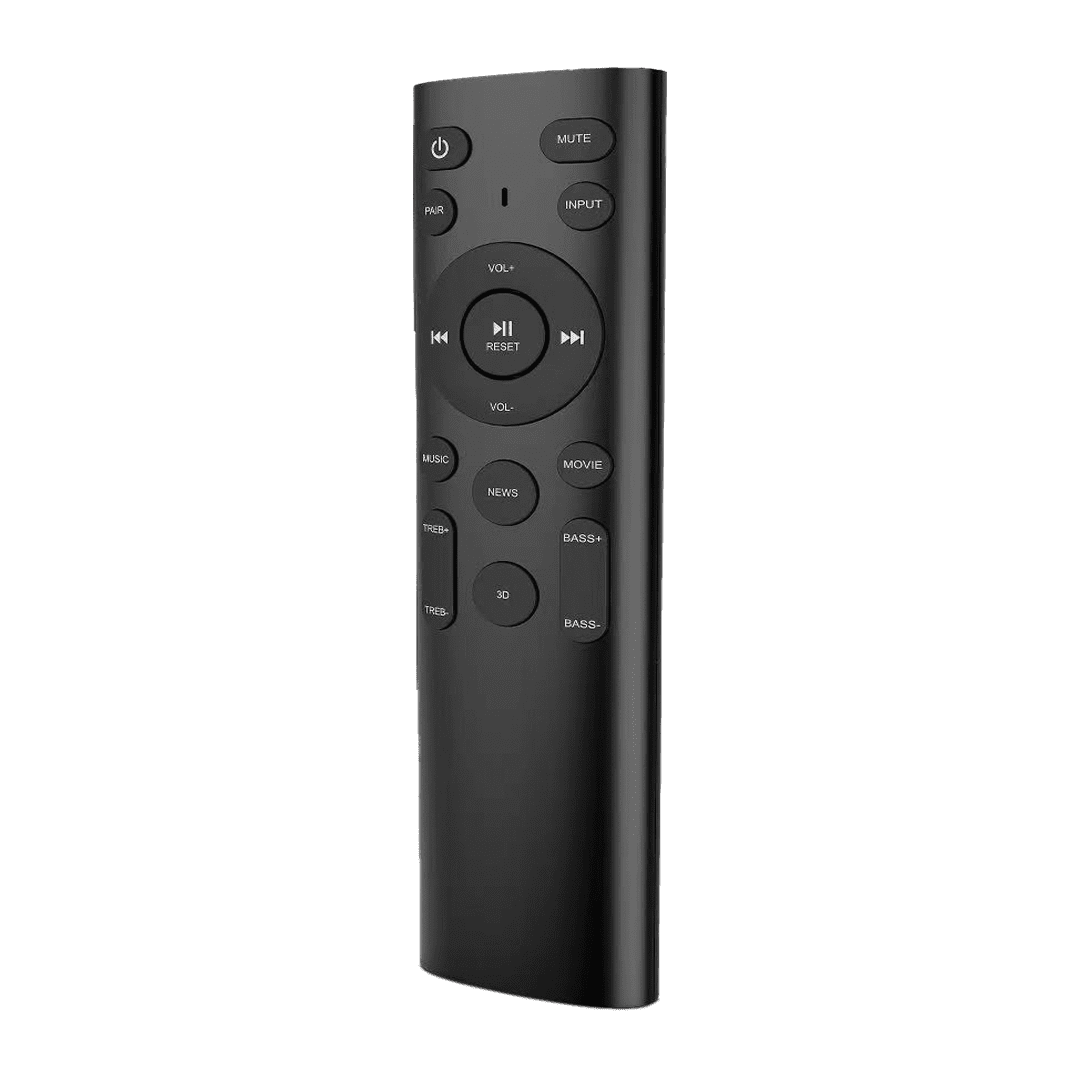

• Remote control
• Aux Cable
• Wall mount and fasteners
• User manual
• Power adapter

Features available in elite 1000 sound bar

• Wall Mountable Soundbar
• Digital Amplifier with DSP inside
• LED Display
• Bluetooth V 5.0
• Remote Control
• Surround Sound
• Music Mode
• Movie Mode
• HDMI(ARC) Input
• AUX Input
• Optical Input

Channel and Subwoofer Type

• 2.1 Channel
• Wireless subwoofer

About The Product?
How do I connect my Elite 1200 Soundbar system to my TV?
A: You can connect the system to your TV via an AUX cable or Bluetooth HDMI or Optical Cable. Plug one end into the Audio Output of your TV and the other end into the Audio Input of the Elite 1200 Soundbar system. If your TV supports Bluetooth, you can also pair the speaker system wirelessly.
How do you control the Elite 1200 Soundbar system?
A: The toggle controls on the Elite 1200 Soundbar system allow you to adjust volume, toggle between different audio sources, and switch the system on or off. The remote control provides additional controls including Bluetooth pairing and specific audio settings.
How do I pair my device via Bluetooth to Elite 1200 Soundbar system speaker system?
On your device, turn on Bluetooth and search for available devices. The Elite 1200 Soundbar system should appear in the list. Select it to initiate pairing. If asked for a password, refer to your user manual, but many devices use '0000' or '1234'.
How can I achieve the best surround sound with the Elite 1200 Soundbar system?
The optimal placement of speakers for surround sound is important. The main subwoofer can be placed near the TV or in the back while the Soundbar should be placed in the front of the room to get the best sound effect.
What can I do if one of my speakers is not working?
Check to make sure all connections are secure and the speaker is properly powered. If the problem persists, the speaker may be faulty or the wire may be damaged. Consult your user manual or contact Audionic support.
How can I adjust the bass level on Elite 1200 Soundbar system?
You can adjust the bass level using the remote control. Look for the bass control button and adjust it to your liking.
Can I connect multiple devices to my Elite 1200 Soundbar system at the same time?
A: Generally, the Elite 1200 Soundbar system system can only be connected to one audio source at a time. However, you can easily switch between devices by disconnecting the current device and pairing another.
What should I do if the sound quality is poor?
A: Make sure the audio source is of good quality. Poorly recorded or compressed audio will not sound good on any speaker system. Also, make sure the Elite 1200 Soundbar system and the source device's volume are set appropriately - extreme high or low settings can distort sound.

Audio Performance?
What is the output power (RMS) of the sound bar and subwoofer?
The subwoofer and sound bar have a total output power of RMS 240 watts.
How many drivers does the sound bar have, and what are their sizes?
The sound bar features two drivers, while the subwoofer includes one 8 inch driver for enhanced bass.
What is the frequency response and signal-to-noise ratio of the sound bar system?
The Elite Sound Bar offers a frequency response of 45Hz-20kHz and a signal-to-noise ratio of ≥66dB.
What is the impedance of the subwoofer and the sound bar?
The subwoofer has an impedance of 3Ω, while the sound bar has an impedance of 4Ω.

What is RMS?
RMS stands for Root Mean Square, and it is a measure used to quantify the average power output of an audio device such as speakers, amplifiers, or sound systems. In the context of audio equipment, RMS power refers to the continuous power output that a device can sustain over time without distortion or damage. RMS is particularly important because it provides a more accurate representation of a device's power output compared to other measures like peak power or music power. Peak power, for instance, only indicates the maximum power output that a device can handle for short durations, often during sudden bursts of sound. In the Elite 1200 Sound Bar specifications, the RMS power output is 240 watts. This indicates the sustained power output capability of the sound system, ensuring consistent and reliable audio performance over extended periods.

Audio Input?
The Elite 1200 Sound Bar offers connectivity options including Bluetooth, USB, AUX inputs, HDMI (ARC). Additionally, it is wall-mountable for flexible installation.

Connectivity and HDMI(ARC)
Can I use the sound bar with different devices such as TVs, computers, or smartphones?
Yes, the sound bar is compatible with various devices including TVs, computers, and smartphones etc.
FAQ: What is HDMI(ARC) in a Sound Bar? What is HDMI(ARC) and how does HDMI(ARC) work?
A: HDMI(ARC) stands for High-Definition Multimedia Interface with Audio Return Channel. It facilitates two-way communication between the TV and a sound bar via a single HDMI cable. It allows audio signals to travel from the TV to the sound bar and vice versa through one HDMI cable, simplifying setup and reducing cable clutter. It offers simplified connectivity, supports surround sound formats and provides an immersive and cinematic audio experience.

Sound Modes?
What are Sound Modes?
Sound modes are preset audio settings on sound bars that adjust sound characteristics to suit different types of content, such as music, movies.
What is the Music Sound Mode?
The Music Sound Mode is designed to optimize audio playback for music content. It enhances clarity, balances frequencies, and provides a rich and immersive listening experience tailored for music genres.
What is the Movie Mode?
The Movie Mode is specifically tuned to enhance the audio experience when watching movies or TV shows. It emphasizes dynamic range, enhances dialogue clarity, and provides a more immersive surround sound experience for cinematic content.
How do Sound Modes work?
Sound modes adjust various audio parameters such as equalization, volume levels, and surround sound processing to optimize the sound output based on the selected mode.
Can I customize Sound?
Yes, this soundbar offers the ability to customize sound modes according to personal preferences, allowing users to adjust settings like bass levels, treble, and 3D surround sound effects.
Which Sound Mode should I use?
The choice of sound mode depends on the type of content you are watching or listening to. For example, the Music Sound Mode is ideal for music playback, while the Movie Mode is better suited for cinematic experiences.

Optical Cable?
What is an Optical Cable in a Sound Bar?
An optical cable, also known as TOSLINK or SPDIF cable, is a type of digital audio cable commonly used to connect audio sources, such as TVs, DVD players, and gaming consoles, to sound bars and other audio equipment.
How does an Optical Cable work?
An optical cable transmits audio signals using light pulses through fiber optic strands. It converts electrical signals into light signals and then back into electrical signals at the receiving end, ensuring high-fidelity digital audio transmission.
What are the benefits of using an Optical Cable?
Optical cables deliver uncompressed digital audio signals, resulting in high-quality sound reproduction without interference or signal degradation. They also support surround sound formats and provide immersive and cinematic audio experiences.

Physical Dimensions?
What are the dimensions of the subwoofer and the sound bar?
The subwoofer dimensions are 190W410H350D mm, while the sound bar dimensions are 72.5H86D960L mm.
