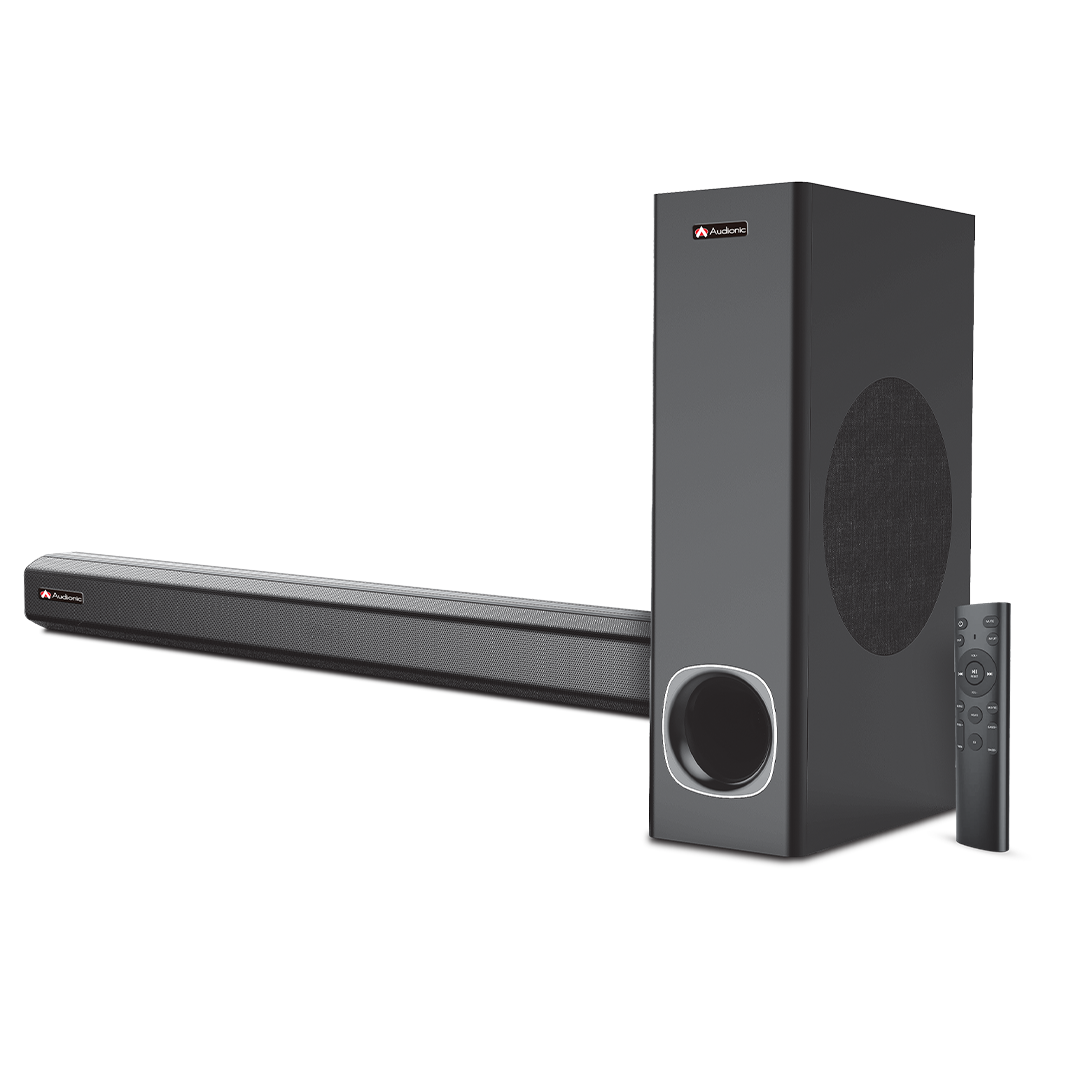

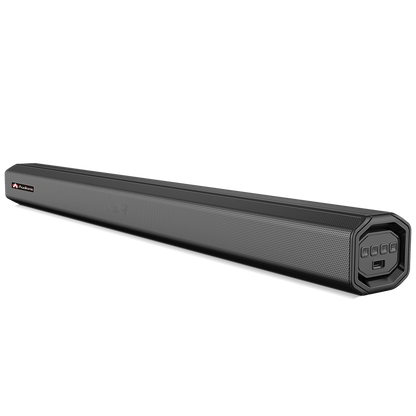

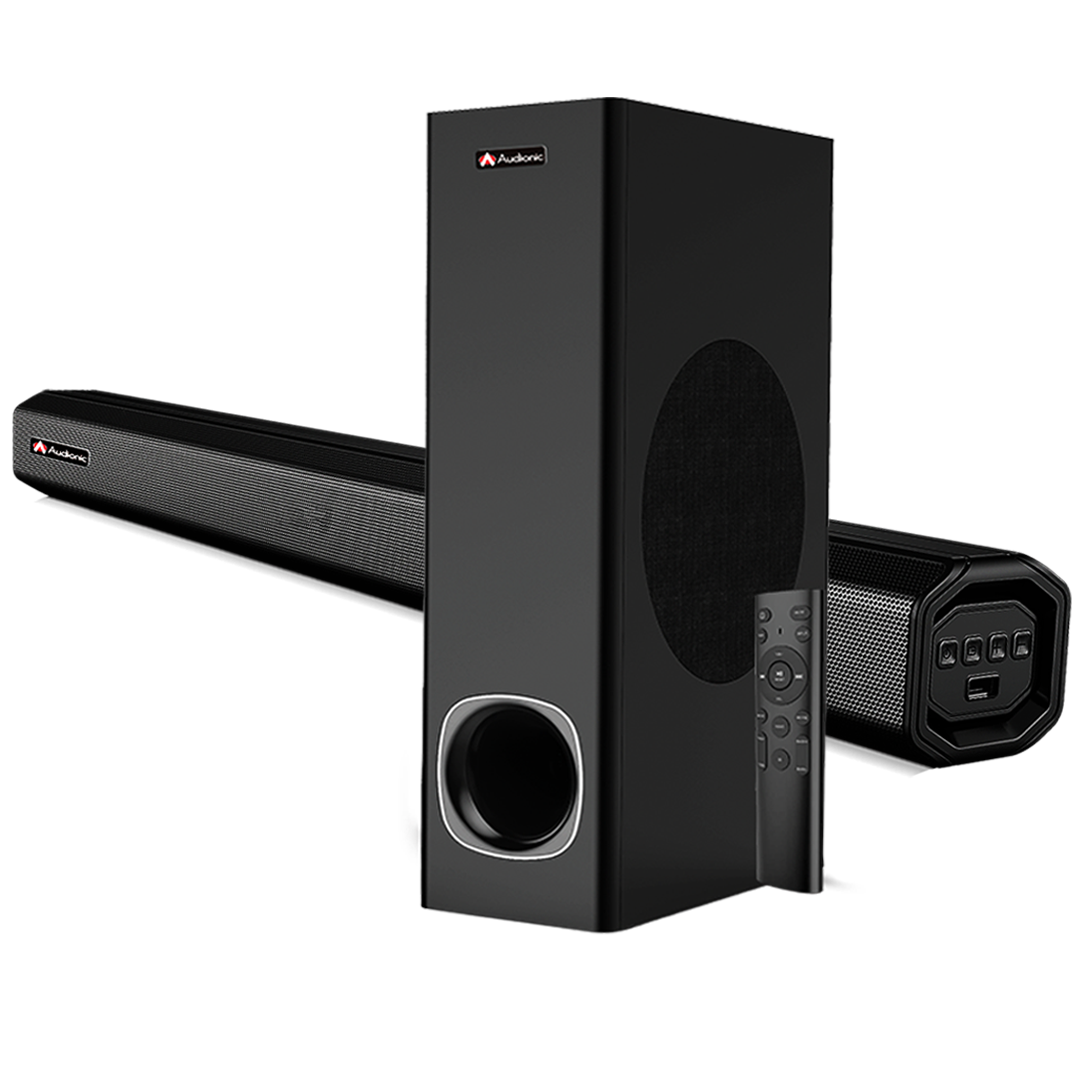

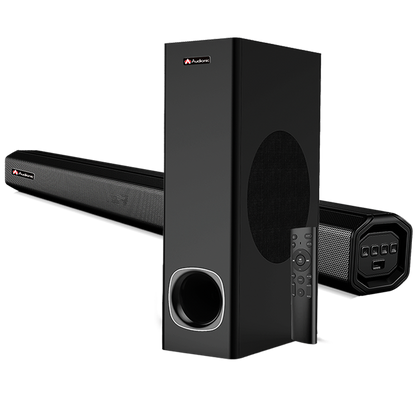

Prism 500 Soundbar with Woofer

Prism 500 Soundbar with Woofer

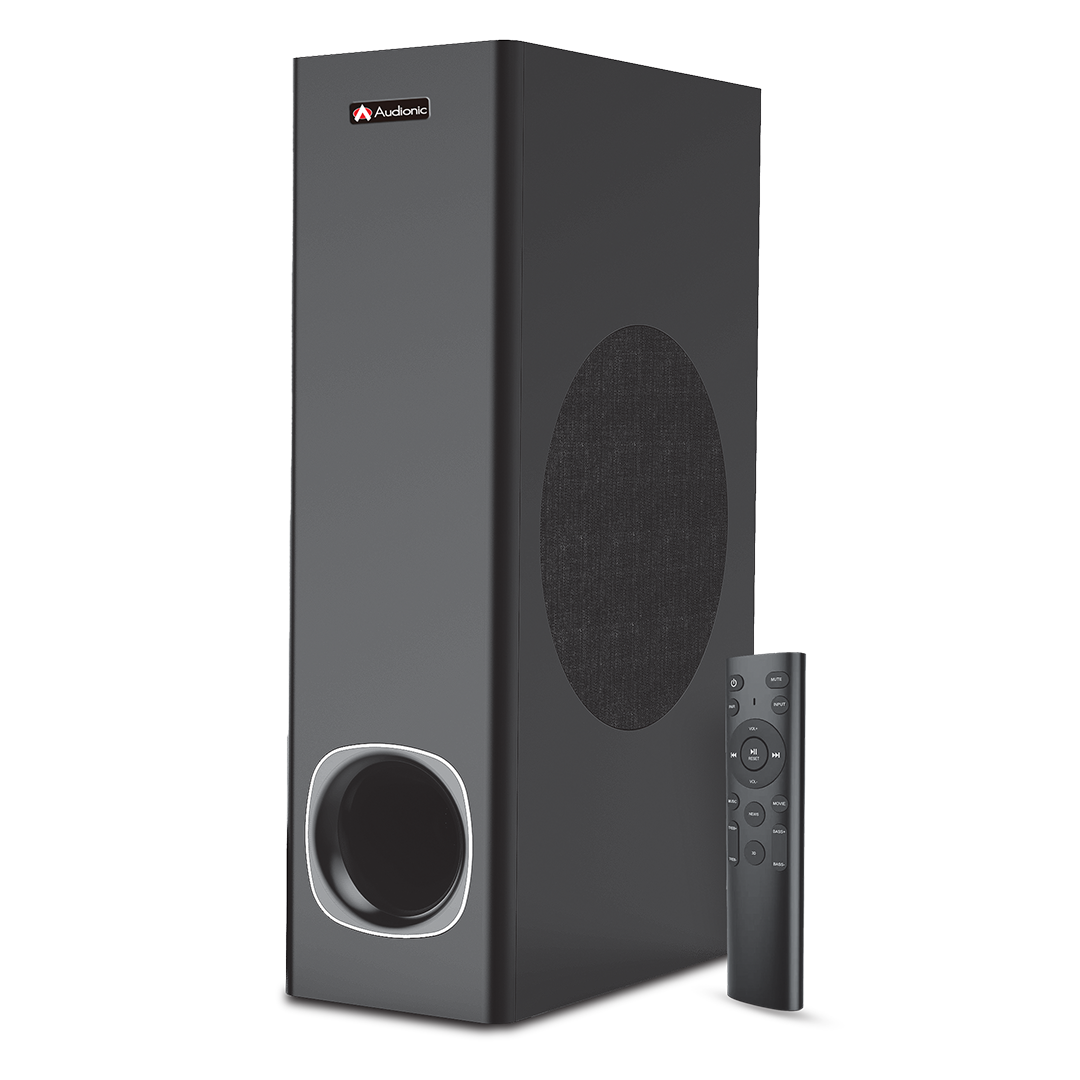

Subwoofer

• Subwoofer: 5.2 Inches or 13.3 cm

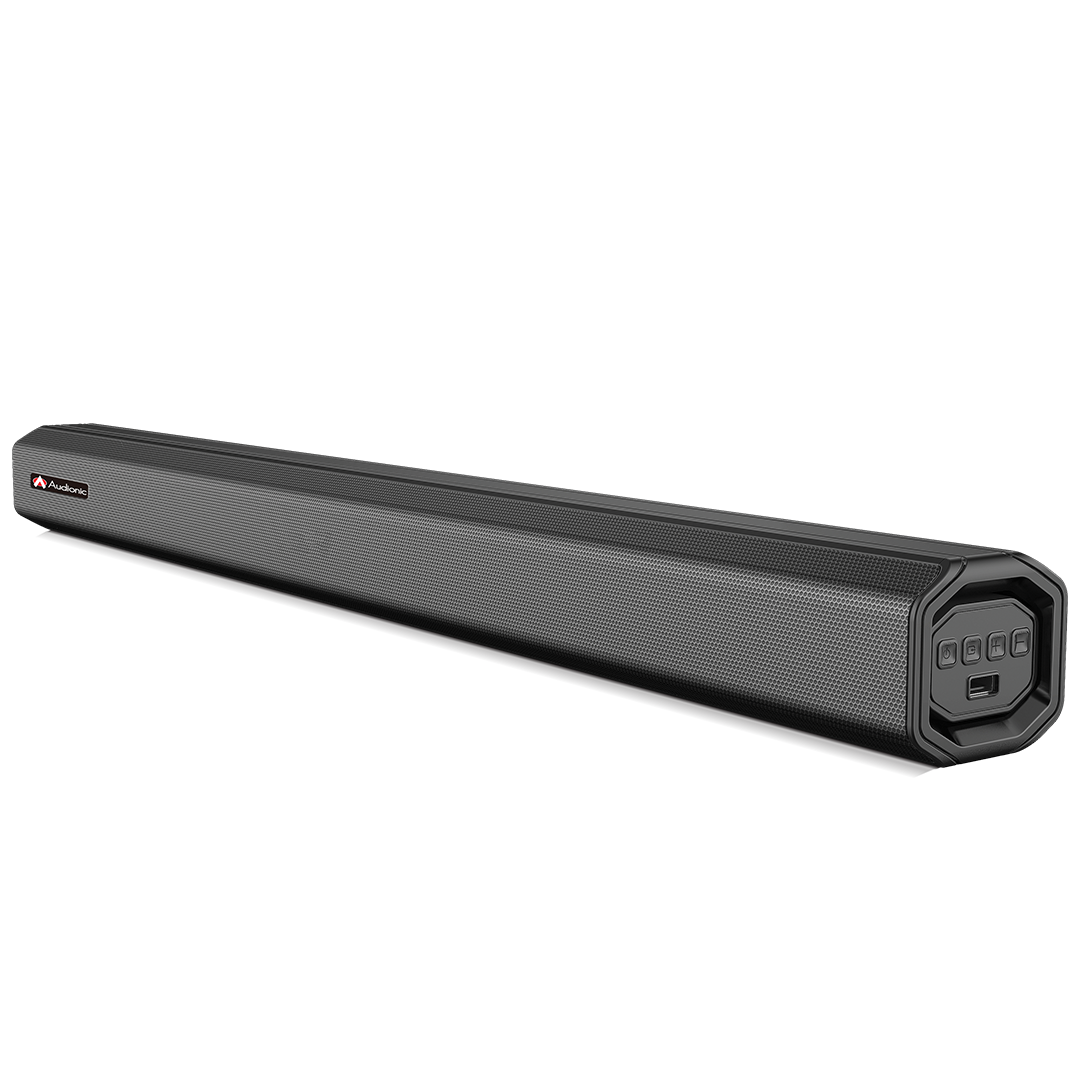

Soundbar

• Soundbar drivers: 2.25 Inches x 2

Power Output

• Total RMS Power: 80W
• Subwoofer and Soundbar: 40W+40W x 2

Wall Mountable

• Yes

Input

• Wireless BT/USB/AUX/Coaxial IN/HDMI(ARC)

Frequency

• 55Hz ~ 20 KHz

Warranty

• One-year warranty

What's in the Box

• Subwoofer
• Sound bar
• Remote control
• Aux Cable
• Wall mount and fasteners
• User manual
• Power adapter

Features Available in Prism 500 Soundbar with Woofer

• Wall Mountable Soundbar
• LED Display
• Bluetooth
• Remote Control
• Surround Sound
• Music Mode
• Movie Mode
• HDMI(ARC) Input
• AUX Input

About The Product

How do I connect my Prism 500 Soundbar system to my TV?
A: You can connect the system to your TV via an AUX cable or Bluetooth. Plug one end into the Audio Output of your TV and the other end into the Audio Input of the Prism 500 Soundbar system. If your TV supports Bluetooth, you can also pair the speaker system wirelessly.

How do you control the Prism 500 Soundbar system?
A: The toggle controls on the Prism 500 Soundbar system allow you to adjust volume, toggle between different audio sources, and switch the system on or off. The remote control provides additional controls including Bluetooth pairing and specific audio settings.

How do I pair my device via Bluetooth to the Prism 500 Soundbar system?
A: On your device, turn on Bluetooth and search for available devices. The Prism 500 Soundbar system should appear in the list. Select it to initiate pairing. If asked for a password, refer to your user manual, but many devices use '0000' or '1234'.

How can I achieve the best surround sound with the Prism 500 Soundbar system?
A: The optimal placement of speakers for surround sound is important. The main subwoofer can be placed near the TV or at the back, while the Soundbar should be placed in front of the room for the best sound effect.

What can I do if my system speakers are not working?
A: Check to make sure all connections are secure and the speaker is properly powered. If the problem persists, the speaker may be faulty or the wire may be damaged. Consult your user manual or contact Audionic support.

How can I adjust the bass level on the Prism 500 Soundbar system?
A: You can adjust the bass level using the remote control or manually from the knob on the subwoofer. Look for the bass control button and adjust it to your liking.

Can I connect multiple devices to my Prism 500 Soundbar system at the same time?
A: Generally, the Prism 500 Soundbar system can only be connected to one audio source at a time. However, you can easily switch between devices by disconnecting the current device and pairing another.

What should I do if the sound quality is poor?
A: Make sure the audio source is of good quality. Poorly recorded or compressed audio will not sound good on any speaker system. Also, ensure the Prism 500 Soundbar system and the source device's volume are set appropriately — extreme high or low settings can distort sound.

Audio Performance

What is the output power (RMS) of the sound bar and subwoofer?
A: The subwoofer and sound bar each have an output power of 40 watts, totaling 80 watts.

How many drivers does the sound bar have, and what are their sizes?
A: The sound bar features two 5.7cm drivers, while the subwoofer includes one 13.3cm driver for enhanced bass.

What is the frequency response and signal-to-noise ratio of the sound bar system?
A: The Prism 500 Sound Bar offers a frequency response of 55Hz–20kHz and a signal-to-noise ratio of ≥66dB.

What is RMS?
A: RMS (Root Mean Square) is a measure used to quantify the average power output of an audio device, such as speakers or amplifiers. It reflects the continuous power the device can deliver without distortion or damage — unlike peak power which only shows short bursts.
In the Prism 500 Sound Bar, the total RMS output is 80W (40W each for the subwoofer and sound bar), indicating consistent and reliable audio performance.

Audio Input

What are the connectivity options available?
A: The Prism 500 Sound Bar supports Bluetooth, USB, Coaxial IN, AUX inputs, and HDMI (ARC). It is also wall-mountable for flexible installation.

Technical Specifications

What is the impedance of the subwoofer and the sound bar?
A: The subwoofer has an impedance of 6Ω, while the sound bar has an impedance of 4Ω.

Connectivity and HDMI(ARC)

Can I use the sound bar with different devices such as TVs, computers, or smartphones?
A: Yes, the sound bar is compatible with various devices including TVs, computers, and smartphones.

What is HDMI(ARC) and how does it work?
A: HDMI(ARC) stands for High-Definition Multimedia Interface with Audio Return Channel. It allows two-way communication between the TV and the sound bar through a single HDMI cable.
This simplifies setup, reduces cable clutter, supports surround sound formats, and provides a more immersive audio experience.

Physical Dimensions and Weight

What are the dimensions and weight of the subwoofer and sound bar?

• Subwoofer: 140W × 195H × 280D mm, Weight: 3.1 kg
• Sound Bar: 70H × 78D × 750L mm, Weight: 1.7 kg

Sound Modes

What are Sound Modes?
A: Sound modes are preset audio settings that adjust sound characteristics for different types of content such as music or movies.

What is the Music Sound Mode?
A: This mode enhances clarity, balances frequencies, and provides a rich listening experience tailored for music.

What is the Movies Sound Mode?
A: This mode boosts dynamic range, enhances dialogue clarity, and delivers immersive surround sound for cinematic content.

How do Sound Modes work?
A: They adjust EQ settings, volume levels, and sound processing to match the content you are playing.

Can I customize sound settings?
A: Yes, the Prism 500 Soundbar allows users to customize sound modes — adjusting bass, treble, and 3D surround effects as desired.

Which Sound Mode should I use?
A: Use Music Mode for songs and Movies Mode for films/TV for an optimized audio experience.
